Revolutionize Your
CAD Drafting with QuickBlock: Efficient C.M.U. Block Coursing Solutions for Wall Sections
QuickBlock simplifies the creation of precise C.M.U. block coursing through an intuitive dialog box interface. Users can select from a range of block types, joint configurations, and wall thicknesses to efficiently draft wall sections. The accompanying image illustrates several wall assemblies, including a Solid C.M.U. Coursing Wall, an 8″ C.M.U. Hollow Wall, a 10″ Cavity Wall with 4″ Brick (via the QuickBrick App) and a 4″ Solid C.M.U. Wall.
Feature Packed
Simple Dialog Interface

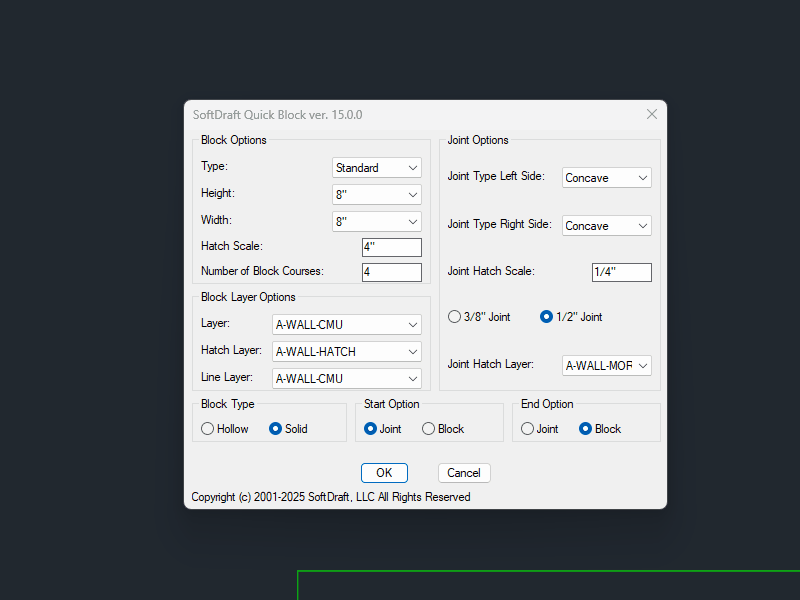

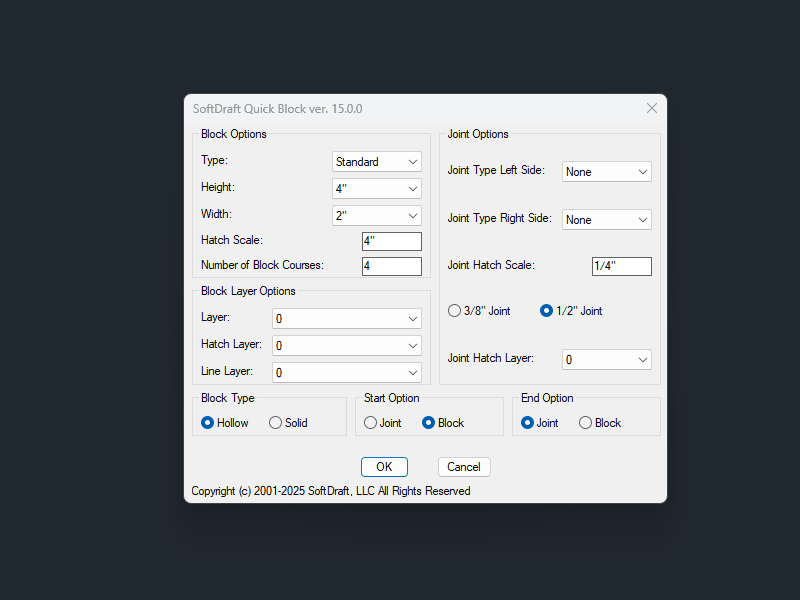

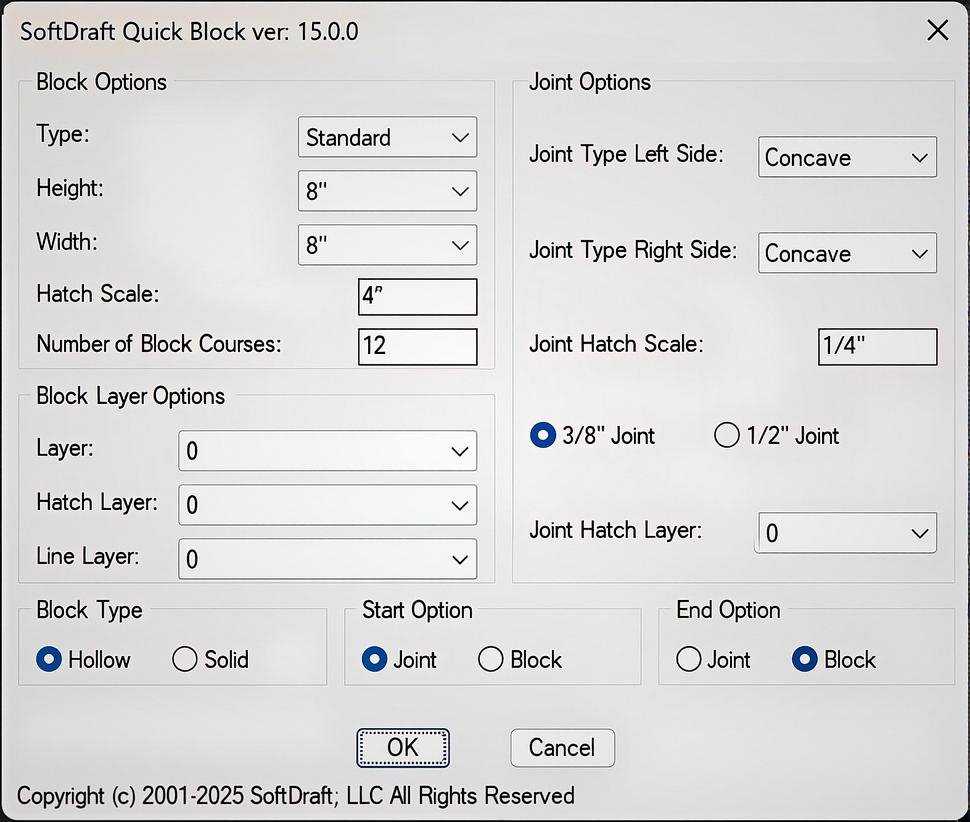

Create the required C.M.U. Block Wall Section in the dialog before drawing before placement.
C.M.U. Block Options
Includes several Block, joint and layer options.
Joint Options
Includes seven different mortar joint options for the left and right sides of the C.M.U. Block.
100’s Of Combinations
Create an unlimited number of C.M.U. Block Wall sections that be saved and reused in other drawings and projects.
Increased productivity
Quick Block can help you save time and effort by eliminating the need to create C.M.U. Block Wall sections manually.
Improved Accuracy
Quick Block ensures that your C.M.U. block wall sections are created accurately and consistently.
QuickBlock AC AutoCAD Version
- This version is compatible with Autodesk® AutoCAD® 2012 to current version (including other vertical products).
- User Selected Layers for C.M.U. Block Hatch, and Joint Hatch
- Various Joint Types Include None, Struck, Concave, Flush, Weathered, V-Shaped, and Raked
- Different Joint Types set for the Left and Right side of the Block
- Block Start Options include Full Joint, Half Joint or Block
- Block End Options include Joint or Block
QuickBlock LT AutoCAD LT Version
This version is compatible with Autodesk® AutoCAD® 2012 LT to current LT versions.
One of the significant advantages of Quick Block is the flexibility it provides in the creation of C.M.U. Block types, joint selections, and wall thicknesses. By selecting the desired options within the dialog before placement, users can create an unlimited variety of C.M.U. Block designs with ease.
QuickBlock AC AutoCAD Version
Using Quick Block is a breeze. Once the user has made the necessary selections, they can begin the block placement process by clicking on the starting point. The software takes care of the rest, automatically generating the required blocks and coursing, thus streamlining the process and freeing up valuable time.
Why SoftDraft?
We started in production drafting of contract documents by hand in the A/E/C Industry in 1968 and then in AutoCAD ver. 1.2 in April of 1983.
After AutoLISP was made available in AutoCAD in 1986 we began to implement AutoLISP applications for many of the simple repetitive tasks encountered.
Now, these Software applications are developed from our years of drafting experience and not by software programmers without any drafting experience.
Our software makes the user productive immediately with an entitative dialog user interface easy to navigate.
Each software application includes a dialog interface with the relevant information the user needs to complete the specific task.
Some dialogs have the ability to save the information for later use in other drawings or to maintain consistency with other users in the drawing documents.
Having just one or two of these applications can drastically cut the time you’re spending on drafting.
